Brief Information:
1. 23L Class B Sterilizer. With Printer. With CE Certification.
2. Machine Conveys perfect performance for sterilizaiton in Dental Clinic, Lab, Beauty Salon, Tattoo Salon.
3. Guarantee One Year Warranty with this Machine. Every penny worth.
4. We Offer Free Shipping for Australia and most other countries. Sitewide orders available for Free Shipping.
5. Payment Method: Paypal. Paypal supports guest payment with Credit Card or Debit Card if you don't have an Paypal Account
1. The Autoclave is specially designed for the occasions in use of frequent sterilizations. It is equipped with the microprocessor for intelligent control and manual-machine interface for convenient operation.
2. With the distinctions in displaying parameter and condition actively, evaluating malfunction automatically, shutting off for self-protection automatically in case of excessive temperature and pressure, this type autoclave is reliable product in sterilizing.
3. This product can be applied in sterilizing for the tooth device, operation device, Sanitary Material and other heat-resisting articles existing in the Dept. of Stomatology, Ophthalmology and lab.
4. Preparation Before Operation
I. Before operation, please connect well to the power source.

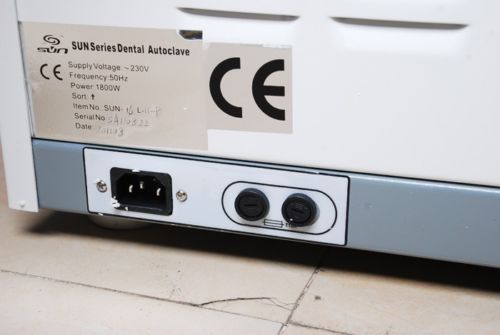

II. Connect the power source hole under the back left side of the autoclave and the power socket by the attached power cable inside the product’s package so as to switch on the autoclave.
III. Push down the main power button at the right bottom corner of the front side, when the indicator light is on, it means that the autoclave get through with the shown on the screen.
IV. The autoclave is not heated while under such initialization status.
5. Global standard Class-B type. With Printer.
6. SKU: MT-D-23L(D)-220-B-AU Plug
Rated Voltage: 220V±22V, 50Hz±1Hz, 110V±11V, 60Hz±1Hz
Rated Power: 1800VA / 2000VA
Sterilizing (Pressure/temp.): 0.9-1.3bar/120ºC, 2.0-2.3bar/120ºC (Both of above are Under Standard Atmospheric pressure)
Fuse-Melting pipe: T15A / T30A
Capacity of water tank: 2L
Water Consumption volume per recycling round: 0.3L
Operating Temp: 0-40ºC
Inside dimensions: 240*360mm
Outside dimensions: 780*520*500 mm
Weight: 62kg
Please Note
1. The autoclave must be plced on the horizontal working base.
2. Must use the distilled water for the purpose of lasting the working life.
3. There shall be no clog to the air cooling window on the outer surface.
4. The object apparatus to be sterilized shall be palced on teh device plate with enough clearnace retained in favor of the air circulation inside the sterilizing room.
5. Empty the water inside the cooling water collecting tank frequently. Usually, the cooling water collecting tank shall be emptied once the water storing tank emptied.
6. Must revolve teh door handle to the teminal side while working.
7. Don't open the door of autoclave when seeing the "0" displayed on teh pressure indicator.
8. Not be too closed to the door of the autoclave in case of scald when open the door.
9. Shut off the power before discharging/installing the sealing ring, and the work shall be carried out after further sufficient cooling in case of scald.
10. Don't drag or drop the autoclave during relocation period of the autoclave.
11. The protecting ground shall be reliable.
12. Equipment must be used away from teh magnetic field.
This is autoclave vacuum steam machine, thank you.
This Autoclave is specially designed for the occasions in use of frequent sterilizations. To kill any microorganisms present, the items being sterilized must be exposed to these temperatures for the minimum time recommended. For our sterilization machine, the working temperature is 121℃ and 134℃
Under normal circumstances, if no special requirements need to set the sterilization time。 Sterilization time. 134 ℃ sterilization system default time of 4 minutes, 121 ℃ sterilization time of 20 minutes.
Unwrapped: It’s used to the sterilization choice especially for the unwrapped devices. The working temperature is 121ºC or 134ºC. After having been chosen, its indicator light is on.
Wrapped: It’s used to be the sterilization choice especially for the wrapped devices. The working temperature is 121ºC or 134ºC. After having been chosen, its indicator light is on.
Cotton: It’s used to be the sterilization choice especially for the cotton yarn devices. The working temperature is 121ºC. After having been chosen, its indicator light is on.
Plastic:It’s used to be the sterilization choice especially for the plastic and the rubber devices. The working temperature is 121ºC. After having been chosen, its indicator light is on
121℃ 135℃ button:It’s used to be the choice especially for the working temperature. There are two working temperature for choice: 121ºC or 134ºC, whose light will on after being chosen.
Choose a program, eg. press the wrapped button (about 5 seconds), the third display window into time setting status, press the "cotton " key to increase the sterilization time, press the " plastic " key reduce sterilization time .It can be set for 4 - 60 minutes.
Note: Under normal circumstances, if no special requirements need to set the sterilization time. 134 ℃ sterilization system default time of 4 minutes, 121 ℃ sterilization time of 20 minutes
Please no worries, you can choose 220V AU Plug, and we will send you the right one.
Φ249×450mm
It must be used with sterilization bags about this autoclave.
It is CE certified products. Many Australian customers have bought from us for sterilization machine.
Hi, We own one year quality warranty, pls feel free to order.Thank you.
Questions Need to Think About When Buy An Autoclave Machine Online
Opting for the appropriate autoclave machine is of crucial importance for running your dental practice in an efficient way. How well your practice runs and how much downtime it takes during operation partly depends on your decision.
Questions you should think about in advance when selecting a dental autoclave.
1. Question 1: Sterilizer with Chamber Like 23L Sun or Fast Autoclave with Cassette Like CONTEC 5.2L?
Sun autoclave 23L use a big chamber so it could accommodate many dental instrument trays. The greatest advance for a chamber autoclave is the huge volumes of dental equipment in each sterilization cycle.
CONTEC 5.2L store dental instrument on a cassette and slot for the sterilization. It offers more simplified and efficient operations, faster cycle times to the operator. However, the disadvantage compared to chamber autoclave is that it can not sterilize as many equipment as what chamber sterilizer does.
So, whether it is the great load capacity but the longer cycle time, or the fast speed sterilization but reduced load capacity, which is more important in your point. It should be considered seriously.
2. Question 2: Automatic or manual system, which is a better sterilization option?
Automatic autoclaves could sterilize dental instruments without the need of human intervention. Manual autoclave machine, on the contrary, needs the operation do numerous steps to complete the sterilization cycle. As a result of operation convenience, automatic autoclave often costs more price.
Is there enough time and attention for your team members to run manual autoclave steps? If this is the case, than saving money on a manual autoclave is worthwhile. However, if your team has been too preoccupied by other things to handle a manual machine, a automatic sterilizer will be more suitable. Despite the great initial price, you will enjoy the “set it and forget it” autoclave sterilization the machine brings.
3. New or Used?
New autoclave machine has a manufacture’s warranty. In this case, you do not need to worry about the quality or repair cost. In rare cases, A used autoclaves sometimes also include warranty, however, what is covered and how long it still covers depends on the seller. As a result, new autoclave machine often comes at a larger cost.
If you wanna buy a refurbished autoclave, do you know where to buy? Do you use this autoclave a your primary unit or just a backup machine? What budget for the machine? A new one, refurbished or reconditioned one, or a used one, which might be a more suitable choice, All of these factors should be taken into account.
4. Question 4: The size of the chamber
At athenadental.com.au, we have various chamber sized autoclave machine. The 12L class N autoclave is with a chamber that is 8.6 wide* 11.8 deep. The 23L autoclave by SUN has a chamber size of 9.48” wide and 14.17” deep. Which chamber size will work the best for your needs? You could measure the size of your current largest dental equipment to determine which size is more for you.
Wish you good luck in your hunting for the perfect dental autoclave machine. You can browse our selection of dental autoclaves at a reasonable price.
