Features:
1. Adopting European N standard, with thermal vacuum and drying functions, it can be used for A-type hollow instruments and solid instruments. Thermodynamic vacuum guarantees elimination of cold air from the cavity and makes sure that reachs the optimal effect of sterilization.

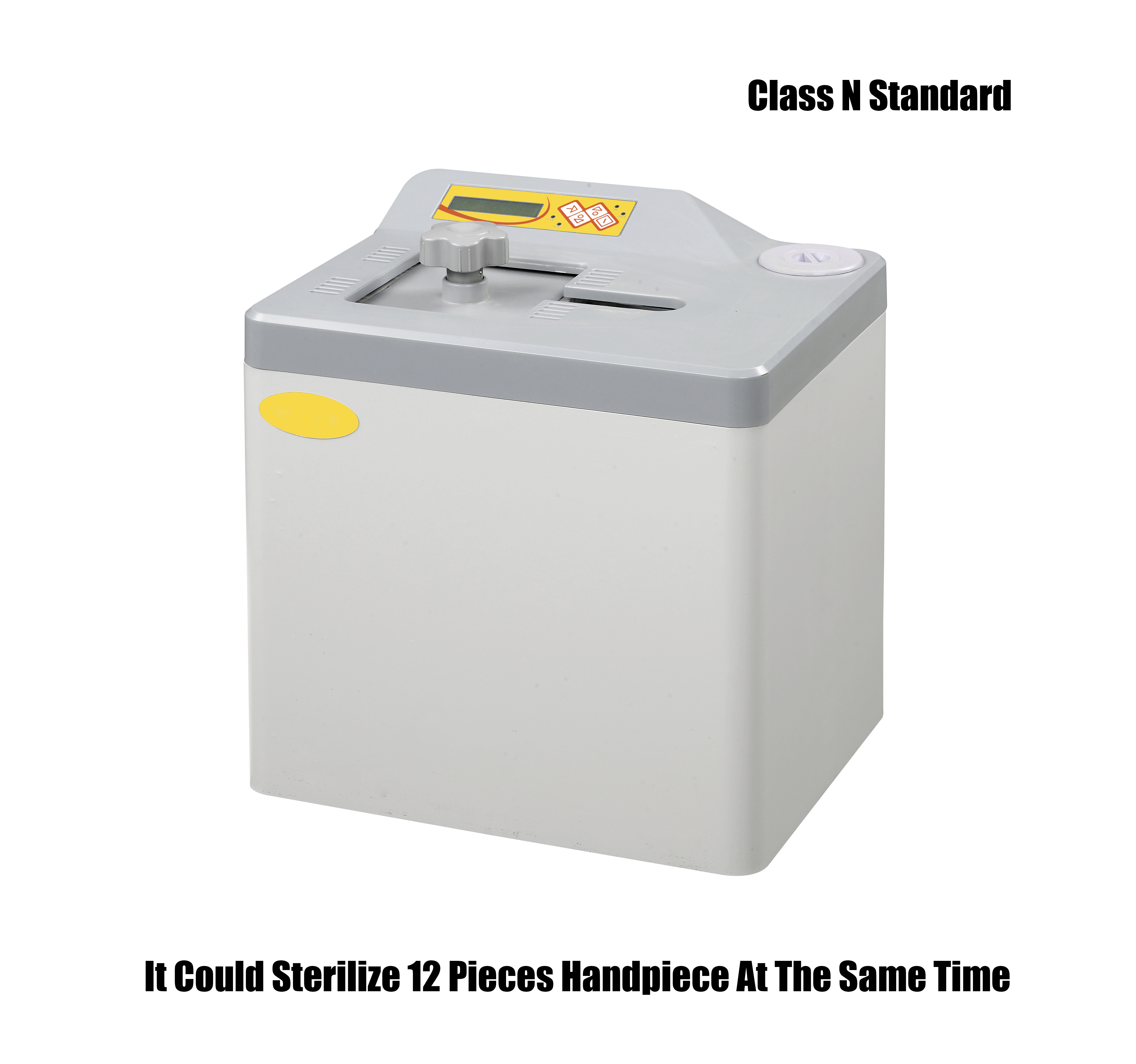

2. Specially design for dental clinic field, it could sterilize 12 pieces handpiece at same time, simplely and efficiently
3. Smaller cubage for convenient moving and installing
4. Sliding door design for easy secure operating
5. High density air filter, eliminating impurity in air, ensuring the returned air dry and pure

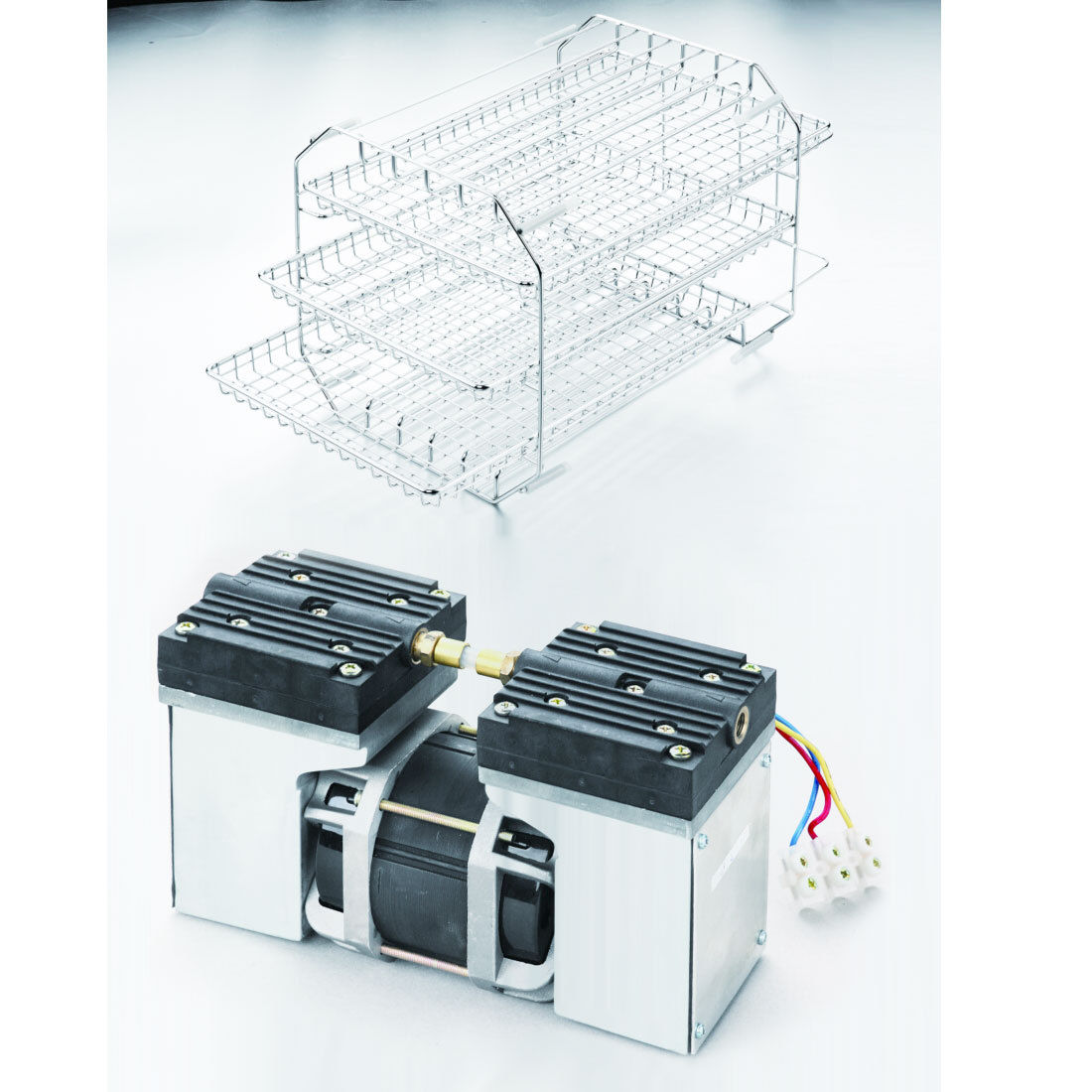

6. Efficient double-head vacuum pump, low noise, vacuum ability could get -0.92Bar, double head ensure the balance during working and stable vacuum state in the chamber
7. Electronic data output, the sterilization information can be saved into memory disk as a txt file, in connection with computer to analysis, realizing digital sterilization.
8. The multiplex tray holder of sterilizer is single stretching molding, painting and polishing treatment, with good compression bear and suit various load. It could set 5 trays on the holder simultaneously when revolve it 90°
9. Circular heating little difference in temperature. Pressure-prevention and corruption-resistance makes it highly reliable. Alloy heating loop protects against damage by no-water heating. Spcious cavity makes it easy to clean.
10. Original fuzzy control system driven by steam generator adoptsPWM(pulse with modulation), able to discriminate the fine differences in temperature allowances and to adjust the modulated waves correspondingly thus making temperature rise at the same speed each time.
11. Chamber is made of purple glass surface copperplate, plastically metamorphosed by the extrusion under 500-ton oil pressure.

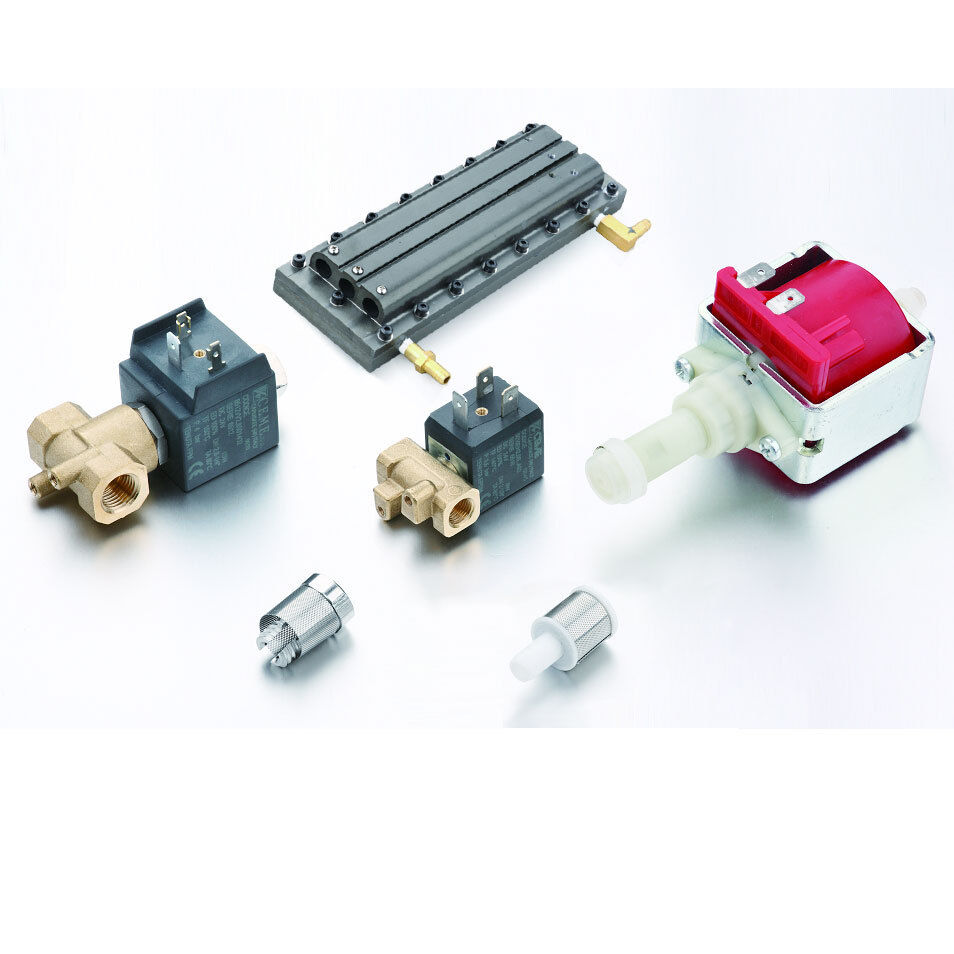

12. Stable ULKA water pump made in Italy.
Specifications
Model: 2L
Voltage: 220V
Power: 1200W
Chamber size: φ88×175mm
Outside size: 350X280X360mm
Packing size: 415X345X441mm
Net Weigjt: 26kg
Gross weight:36kg
Sterilization Class: European class N
Sterilization temperature: 121℃, 134℃
Special program: HIV, HBV long-sterilization program
Dry system: Vacuum drying system
Display: High-light LCD display
Sterilization data: Can connect mini printer to output sterilization data
Tray Holder: 5 layers tray holder with 3 trays
SKU: HS-D-2R-220
Chamber:
medical stainless steel 304
max working pressure: 2.3bar
min working pressure: -0.9bar
max temperature: 145℃
Control precision: temperature: 0.1℃, pressure: 0.01bar
Operation temperature: 5 - 40℃
Noise: <50db
Water consumption in one cycle: 0.16L - 0.18L
