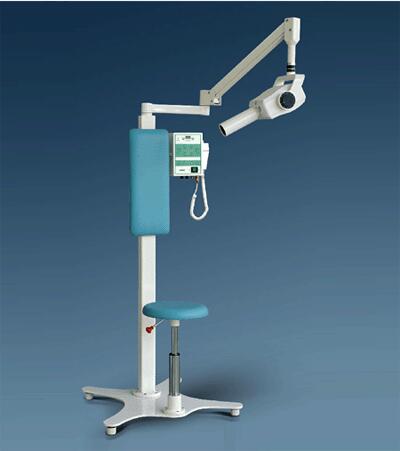

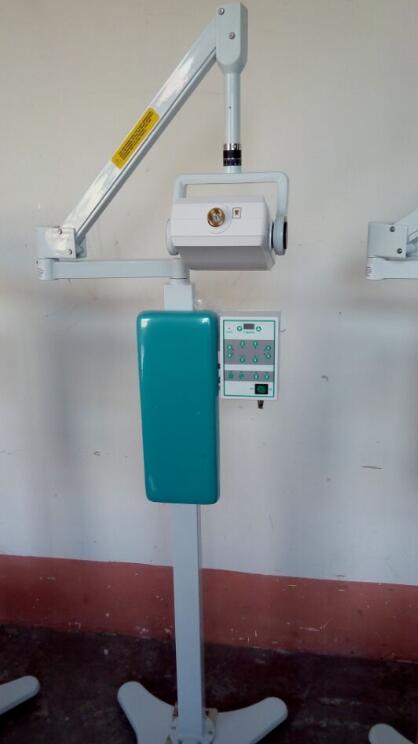

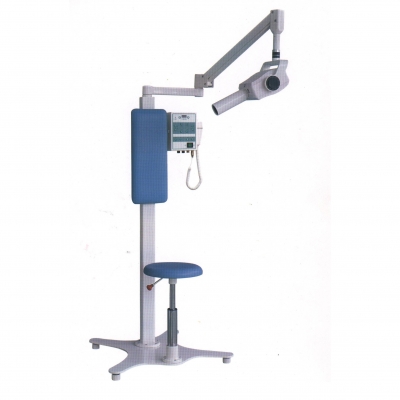

JYF-10D Dental X-ray Unit
1. The unit is particularly provided for synthesis hospitals、cavity specialty hospital and dental clinic to take photo.
2. JYF-10D dental x-ray unit is an essential diagnostic equipment for dentist with features as following:
a). Simple structure: The x-ray generator, central controller and unit frame are integrated into one unit.
b). Good protection: The radiation is much lower than national protecting standard.
c). Digital circuit: The digital circuit makes exposure time accurately.
3. Technical specifications
tube voltage: 60KV±10%
tube current: ８mA±20%
exposal time: 0.2～4.0s
exposal time: 0.01～9.99s
input power: ＜1350VA
irradiation diameter: 52mm
fuse: F5AL250VAC
capacity: 60KV . ８mA .
the way of operation :Non-continuos，Maximum loading time is 9.99s，Intermittent time of 5 minutes
the weigh of x-ray source:7.5Kg
the variation rate of high-voltage generator 1:226
manufactory:hangzhou wandong electrical Co.Ltd.
X-ray area:3.14x262(mm2)
The time of loading follows R’10
up-down range of X-ray head: ≥400mm
forward-back range of X-ray head: 700mm
level turning angle of head: 360°
rounding angle of head: 270°
life: 6 years
4. Environmental and working conditions
a. Condition of transportation and store
Environmental temperature: -20~70℃
Relative humidity:≤75%
Atmospheric pressure: 50~106Kpa
b. Conditions of operation
Environmental temperature: 10~40℃
Relative humidity:≤75%
Atmospheric pressure: 70~106Kpa
c. Power supply
Single phase AC 220±22V;50Hz±1Hz
Power capacity:＞1000VA
Power resistance:＜2Ω

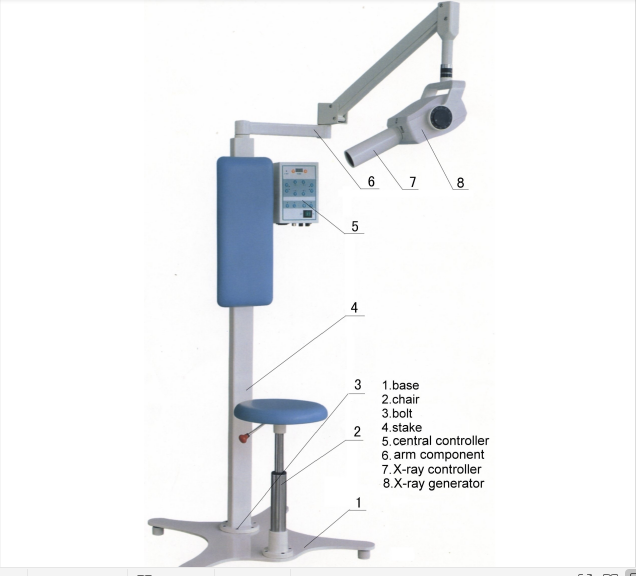

5. Package With
arm component 1
stake 1
chair 1
x-ray generator 1
ornamental ring 1
Central meniscus 2
screw M3 ×6 1
connection jacket 1
central controller 1
spanner 5mm/8mm 1
screwdriver 2
x-ray controller 1
Al piece 0.5/1.0 1
fuse 5A 4
power wire 1
ground wire 1
exposure switch 1
remote device 1
operation manual 1
base 1
