Specifications:
Water Pressure: 0.1Mpa-0.25Mpa
Air Pressure for Handpiece: 0.01Mpa-0.4Mpa
Water pressure: 0.1Mpa~0.25Mpa
Control Way: Air
Amount of gas discharged: 55L/min
Air Pressure Input: 4-8kg
Air Pressure Output: 0-4kg
Air Pressure to Handpiece: 0.01Mpa-0.4Mp+C317a
Connect to air compressor (0.4Mpa-0.8Mpa required)
Water Pressure Output: 0-2kg
Main Unit Weight: 1.4kg
Main Unit Size: 250mmX220mmX160mm
SKU:JK-D-SLWLJ-M4AU
Package With:

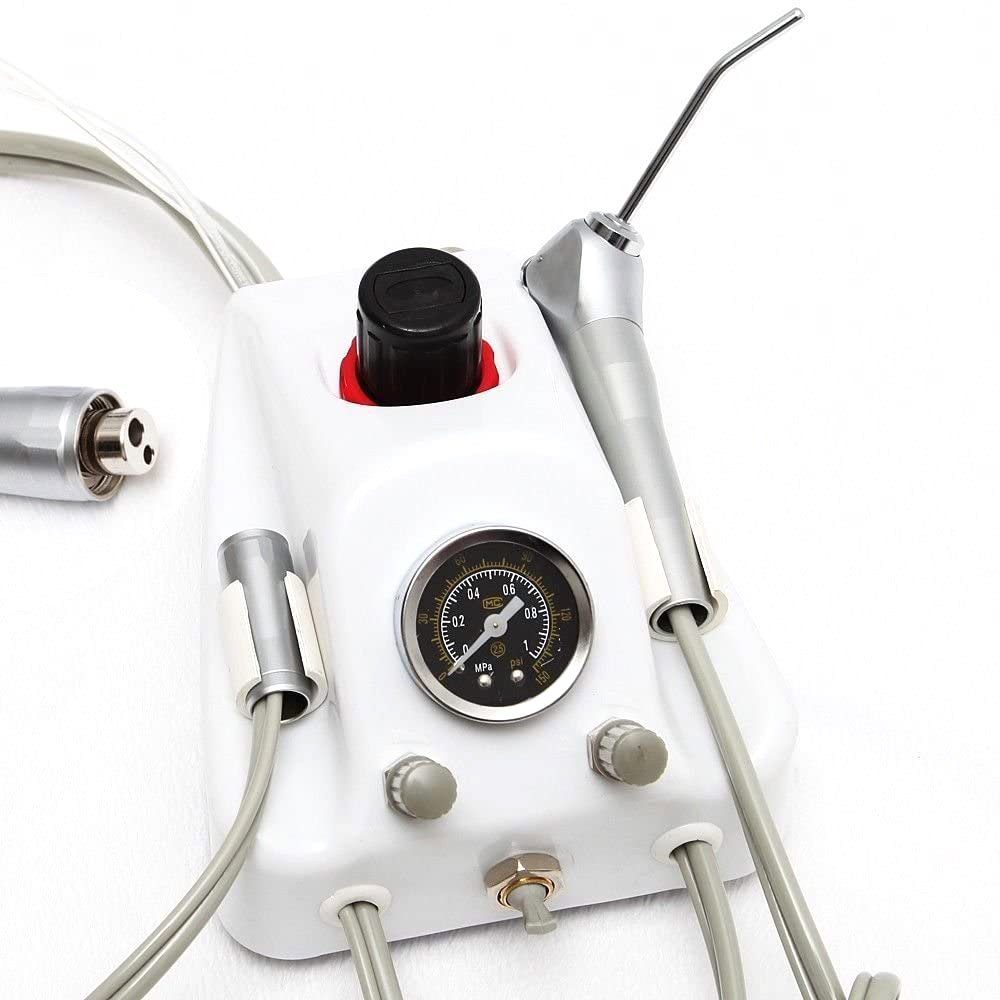

1 x Dental Unit 4 holes

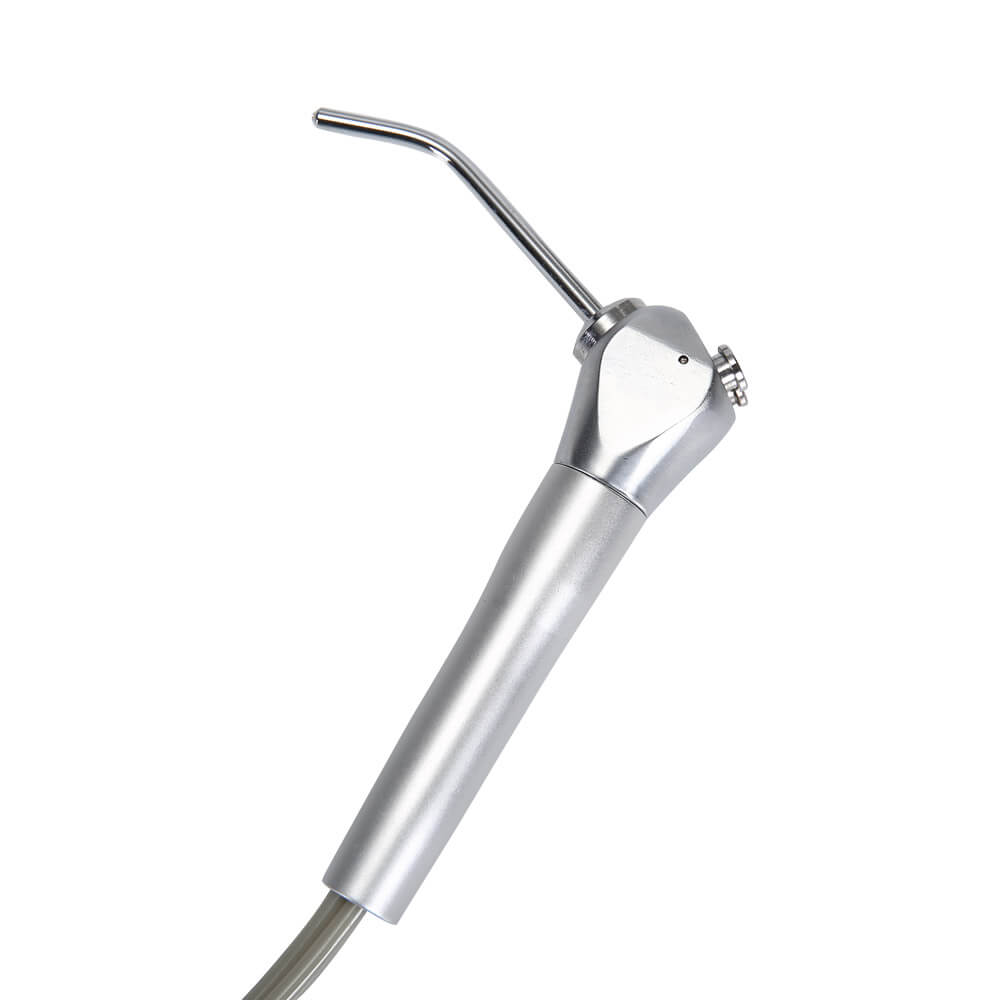

1 x 3 way syringe

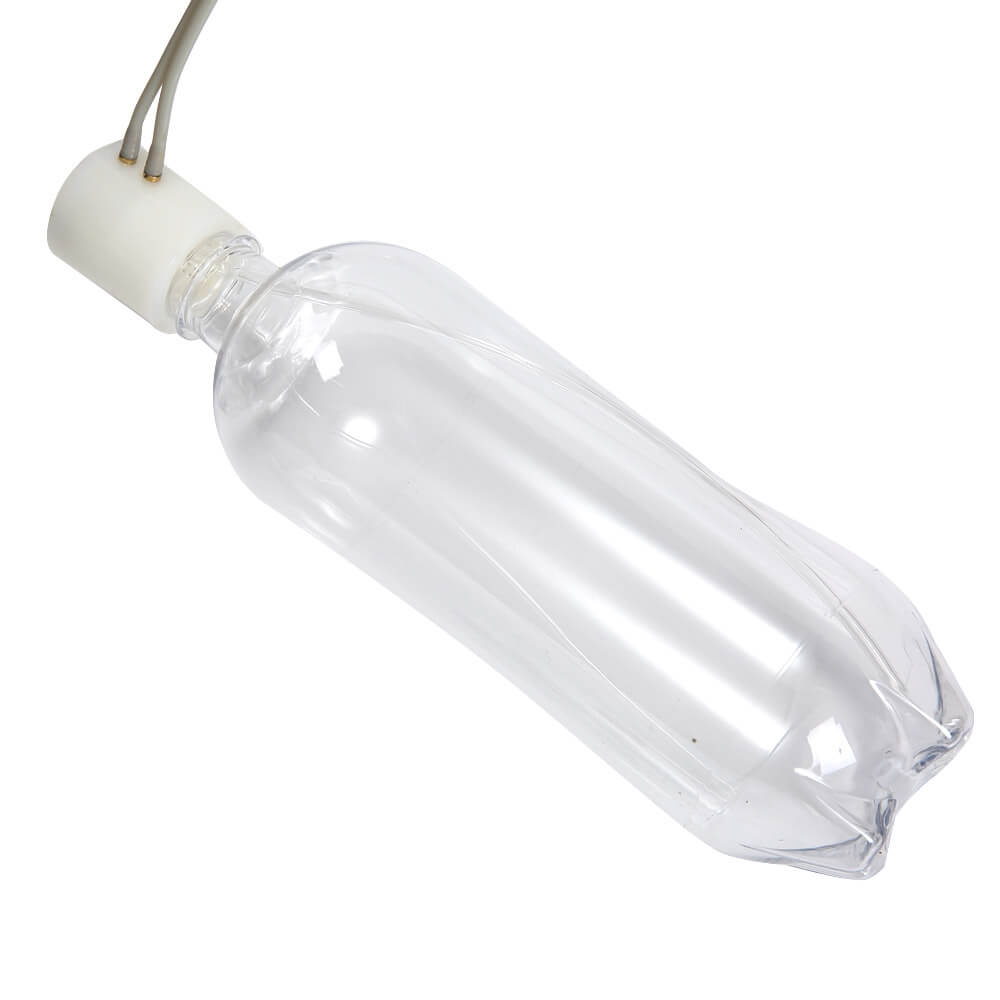

1 x water bottle
1 x foot switch
1 x Plastic tube for connection to air compressor
Method of Use:
1. Link
Connect the gas source with fast interface ; connect water with files . According to different requirements ,connect it with external accessories and equipments .Turn on water vapor switch .after work ,shut off the gas source
2. Use
Connect it with hignt-speed ahndpiee ,adjust pneumatic to 0.2,adjust conditioning cooling water to be like frost when the handpiece works linking sandblasting guns adjust pmeumatice to 0.3,proper amount of water is suitable, After using ,first shut off the sandblasting guns ,then stop it .
Connect it with the scaler adjust pneumatic ti 0.3 ahjust the amount of water to make the scaler viberate.
Connecting low-speed mobile phones ,the greatest pressure regulatoer can operate ,aircraft control valve system has been adjusted by 0.4 ,user need not to use machine whose air pressure is higher than 0.3.
