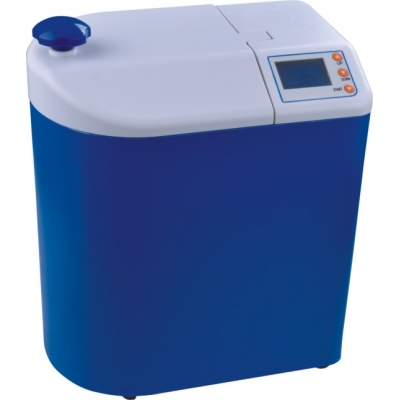

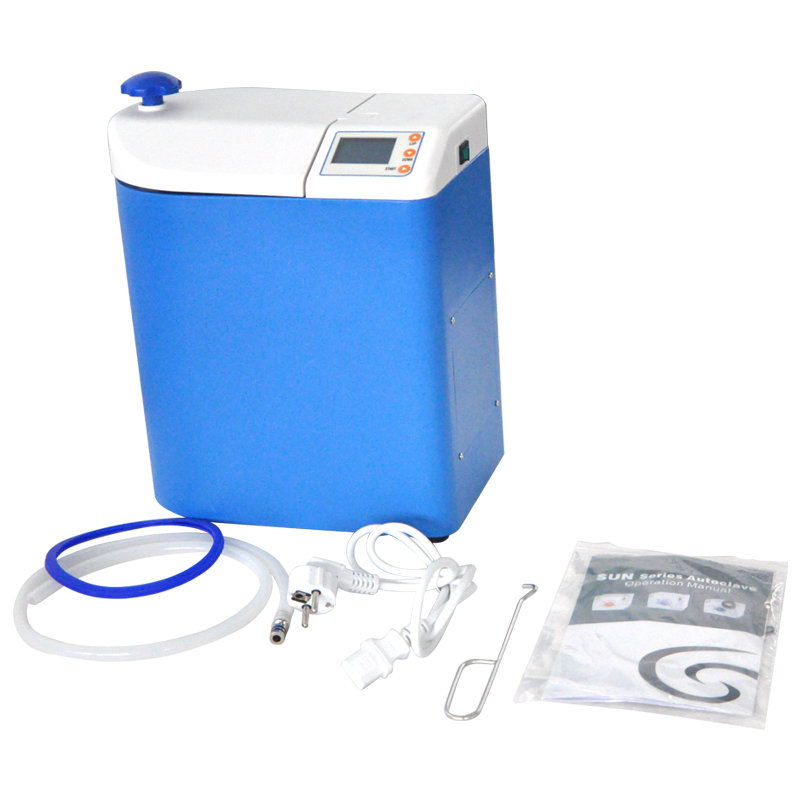

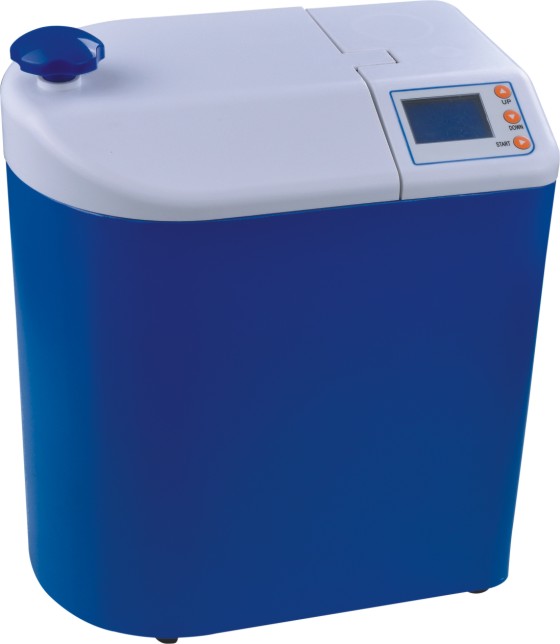

3L Sun Small Autoclave Sterilizer Vacuum Steam SUN3-I For Medical Surgical Lab Sterilisation

• SUN® Autoclave Sterilizer Vacuum Steam 3L SUN3-I

•

• CHARACTER


  1. Quick sterization within 11 minutes.

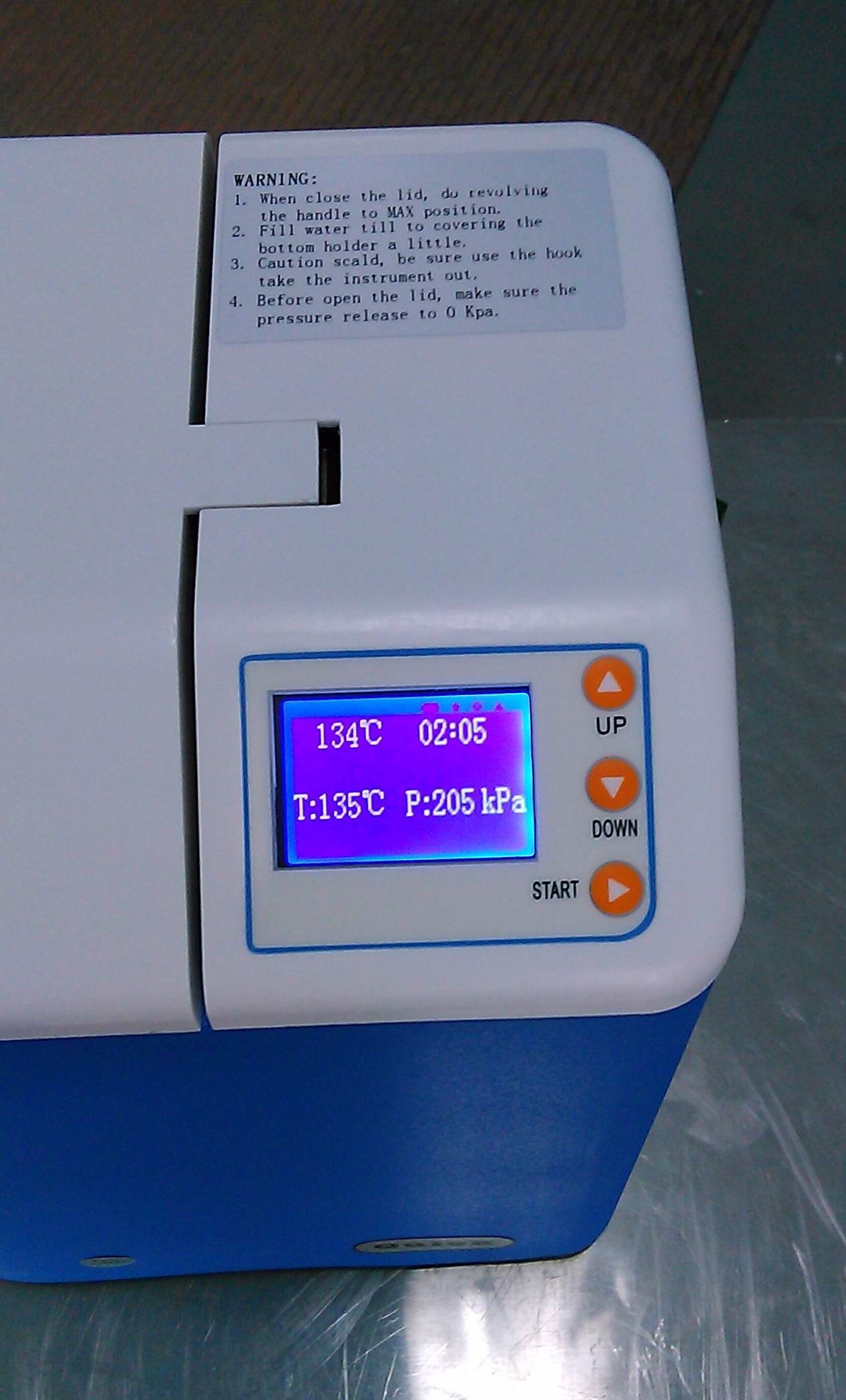

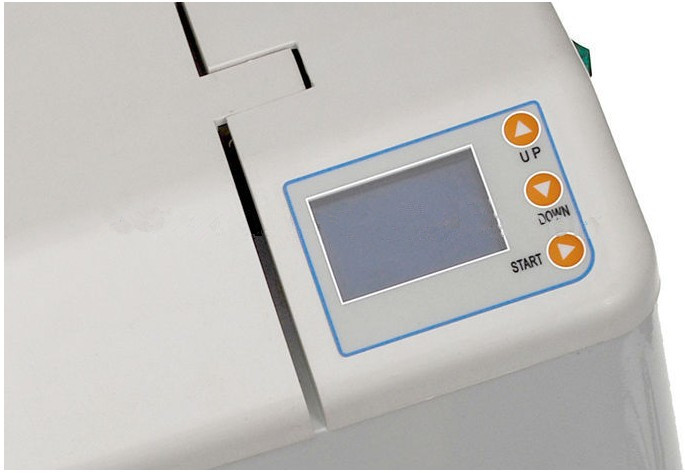

  2. LCD display

  3. With overheat protection.

  4. Installed safety valve.



  APPLICATION SCOPE

  1. Easy operation.

  2. Special designed for the sterilizing of Handpiece and other necessary.dental device.

•

• Descriptions

  1. This Autoclave is a precision instrument specializing in the operation occasion in need of simple, fast and efficient sterilization by the doctor or his/her assistants, and the doctor shall take the responsibility for such work.

  2. This Autoclave is equipped with the microprocessor for intelligent control and man-machine interface for convenient operation.

  3. With the distinctions in displaying parameter and condition actively, evaluating malfunction automatically, shutting off for self-protection automatically in case of excessive temperature and pressure, this type autoclave is reliable product in sterilizing.





  Specifications

  1. Model: SUN3-I

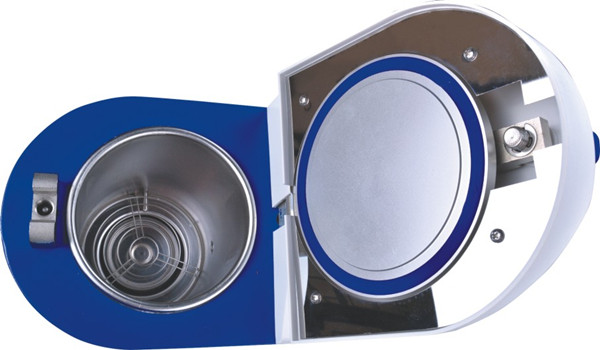

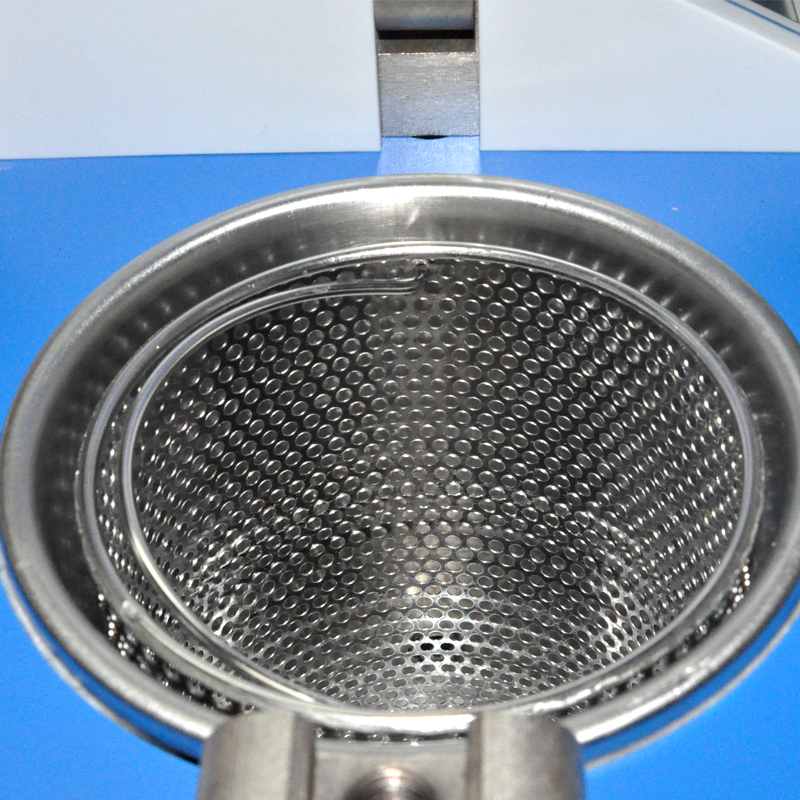

  2. Inner chamber of the quick steam sterilizer (Diameter X Depth) 125mm X 195mm

  3. Rated Voltage: 220V±22V,50Hz±1Hz ； 110V±11V,60Hz±1Hz

  4. Rated Power: 500VA

  5. Sterilizing:(Pressure/Temp.): 200～230Kpa/134℃

     (Both of above are Under Standard Atmospheric pressure)

  6. Fuse-Melting pipe: T15A；T30A

  7. Water Consumption volume per recycling round: 0.15L

  8. Operating Temp: 0-40oC

  9. Net weight:7.5kg

  10. Gross Weight:7.75kg

  11. Appearance size:30*19*35cm

  12. Package Size:38*29*45cm

  13. Power:500W

  14. Sterilization time: 11min

  15. Sterilizar Volume: 3 Litres

  16. Required Water: Distilled water or purified water





  Maintenance and Service

  1. Clean the distilled water tank by medical once a month.

  2. Clean the interior surface of the chamber by alcohol once a month.

  3. Replace the fuse.

  (1) Shut off the power

  (2) Revolve the fuse base by counter-clockwise by screwdriver to bring out the melting fuse to be replaced;

  (3) Replace the new fuse and reset the fuse base on the original position, then use the screwdriver to fasten the base by clockwise.

  (4)Check the correctness of the parameter of the new fuse replaced.

  4. Clean the sealing ring periodically

  The user shall clean the sealing ring periodically for avoiding the influence to the seal caused by the dust/dirt left due to the long period use. Use the smooth cloth with distilled water to wipe the surface of the sealing ring or sealing cap gently. The user shall discharge the sealing ring for further cleaning or replacement if the air-leaking problem can not be resolved after the above process (The user shall discharge the sealing ring periodically for cleaning and inspection as recommendation by the supplier).





  Transportation and Storage

  The autoclave shall be transferred and stored with the below conditions:

  Ambiance temperature: -40oC -+55oC

  Relative humidity: ＜ 85%

  Atmospheric pressure: 500HPA-1060HPA

• 3. SKU: MT-D-SUN3(I)-220

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•

•
